3150LM 30 Watt 6500K Exterior LED Landscape Lighting

Product Categories
JIANGSU DALITE ELECTRICAL TECHNOLOGY CO.,LTD
Contact Now

3150LM 30 Watt 6500K Exterior LED Landscape Lighting

Brand Name : DALITE

Model Number : LTYL-909A

Certification : UL, DLC, CE, CB, ENEC

Place of Origin : CHANGZHOU CITY CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 40000sets/month

Delivery Time : 2-6 weeks

Packaging Details : Form + Carton

Patent num. : ZL 2018 3 0024943.7

Material : Die-cast aluminum

Efficiency @4000K : 105LM/W

CRI : Ra>70

IP rating : IP65

Impact Resistance : IK08

Contact Now

Patent design, Full series Certification, Individual lenses Urban Led Lamp, LTYL-909A Outdoor Led Landscape Lights

Code : LTYL-909A

The nature of light LTYL-909 series
Light plays an integral role in defining the spaces in which we live.
As part of the pedestrian experience we want to be reminded of spaces we value. The most valued “people spaces” in the urban environment are those that tie to nature.
Dalite’s Nature family of LED luminaires uses seamless organic design elements with an unregimented symmetry as seen and reflected in nature.
Various LED optical technology allows the Nature to deliver precise and elegant illumination that enhances the world around us.
From site to street
Complementary design across products connects multiple spaces.
3150LM 30 Watt 6500K Exterior LED Landscape Lighting
Key advantages
  • Patent number:ZL 2018 3 0024943.7
  • Clean, smooth design blending harmoniously into outdoor environments.
  • Heavy-duty die-cast aluminum housing.
  • UV stabilized polyester powder coating finish for durability and corrosion resistance.
  • Precision engineered individual lenses made of optical grade polycarbonate for maximum light intensity, with tempered glass cover to protert the optics.
  • Excellent thermal management
  • IP65 protection degree
  • Full series certification: UL, DLC, CE, CB, ENEC
  • Luminous efficiency up to 105LM/W.
Characteristics
Code LTYL-909A
Size(D*W*Hmm) 488*488*618
Rated Power 30/60/100/150W
Beam Angle 90°*90°/T2-S
Efficiency @4000K 105LM/W
Luminous Flux 3150/6300/10500/15750LM
CCT 3000-6500K
CRI Ra>70
Input Voltages 120-277V
Frequency 50-60Hz
Power Factor >0.95
Protection Index IP65
Impact Resistance IK08
Working Temperature -40-50℃
Working Humidity 10%-95%
Electrical Class Class I / Class II
Finishing Standard color(RAL 7035,7042,9006,9007) other colors upon request
Service Life >50000H
Dimensions
3150LM 30 Watt 6500K Exterior LED Landscape Lighting

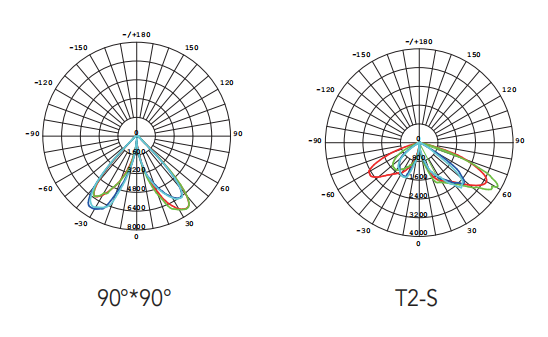

Photometric Distributions
3150LM 30 Watt 6500K Exterior LED Landscape Lighting
Installation Diagram
3150LM 30 Watt 6500K Exterior LED Landscape Lighting

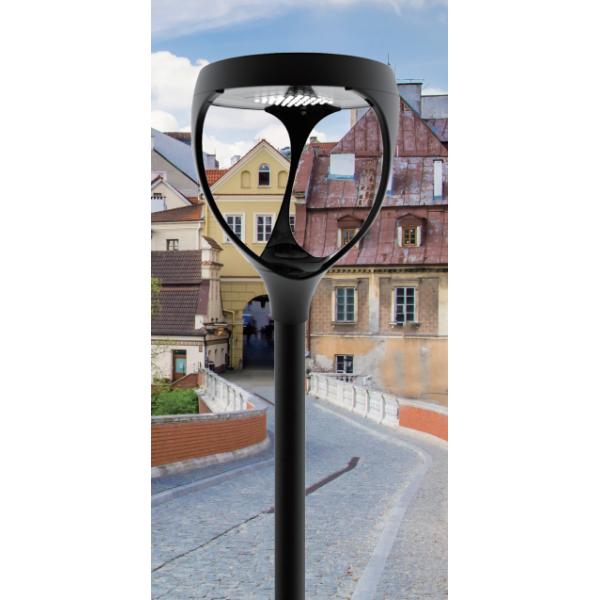

Application example
3150LM 30 Watt 6500K Exterior LED Landscape Lighting
