Name: 277V Architectural LED Lighting
Brand: DALITE
Price: 1 USD

Brand Name : DALITE

Model Number : YGL-1003

Certification : CE, UL

Place of Origin : CHANGZHOU CITY CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 40000sets/month

Delivery Time : 2-6 weeks

Packaging Details : Form + Carton

Material : Extrusion aluminum

Input Voltages : 120-277V

IP rating : IP65

Impact Resistance : IK08

Working Temperature : -40-50℃

Working Humidity : 10%-95%

Electrical Class : Class I

Color : Matt black, white, bronze as requirement

Contact Now

Voltage sensing Led light, Extrusion aluminum,Glass diffuser,IP65 protect, YGL-1003 Architectural Led Lights

Code : YGL-1003

Key advantages

Characteristics

Code	YGL-1003A	YGL-1003B
Size(DWHmm)	5846690.5	11836690.5
Rated Power	20W	40W
Beam Angle	15°/30°/60°/10*60°/110°
Efficiency @3030	>90LM/W
Luminous Flux	>1800LM	>3600LM
CCT	3000-6500K
CRI	Ra>70
Input Voltages	120-277V
Frequency	50-60Hz
Power Factor	>0.9
Protection Index	IP65
Impact Resistance	IK08
Working Temperature	-40-50℃
Working Humidity	10%-95%
Electrical Class	Class
Finishing	Standard color(RAL 7035,7042,9006,9007) other colors upon request
Service Life	>50000H

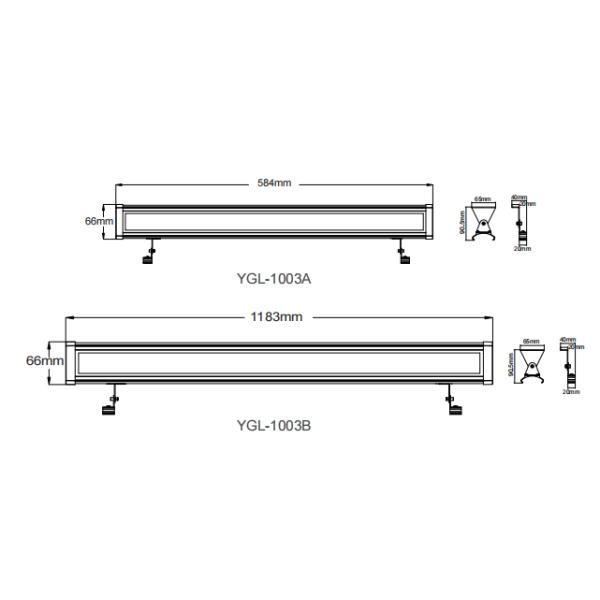

Dimensions

Photometric Distributions

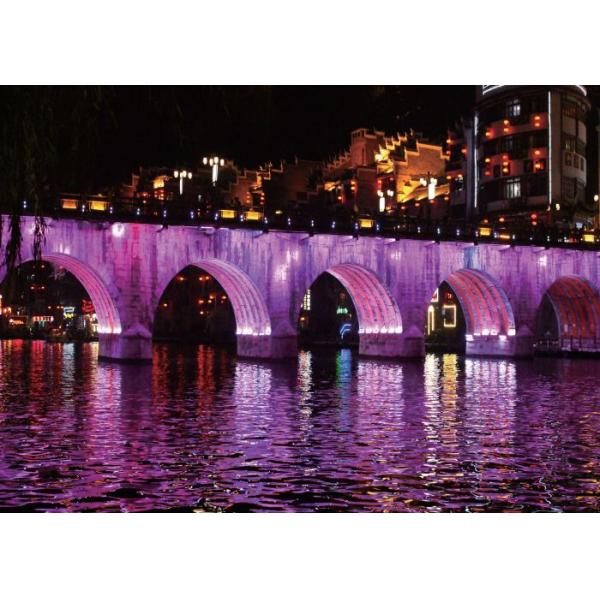

Application sample
