Name: 24W Outdoor LED Wall Lights
Brand: DALITE
Price: 1 USD

Brand Name : DALITE

Model Number : LBDL-1030

Certification : CE, UL

Place of Origin : CHANGZHOU CITY CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 40000sets/month

Delivery Time : 2-6 weeks

Packaging Details : Contoured foam + Carton

Material : Injection die-cast aluminium

Color : Matt black, white, bronze or as requirement

IP rating : IP65

Impact Resistance : IK08

Working Temperature : -40-50℃

Contact Now

CE & UL Certification High Voltage Driver 347 - 480V Long Time Lifetime Waterproof Outdoor LED Wall Lights

Model: LBDL-1030

Key advantages

• Die-cast aluminum housing and tempered glass diffuser

• adjustable mounting angle degree

• Textured architectural bronze powder coat finish Other colour

available under request

• Multiple mounting options

• Silicon Gasket , IP65

• Easy installation

• Voltage sensing 120-277V with 0-10V dimmable driver

• High voltage driver:347-480V

Characteristics

Code	LBDL-1030A	LBDL-1030B
Size(DWH mm)	168197123	242286.5153
Rated Power	12/20/24W	40/50/75W
Beam Angle	100°	100°
Efficiency@2835	>120LM/ W	>120LM/ W
Luminous Flux	>1440/2400/2880 LM	>4800/6000/7200/9000 LM
CCT	3000/4000/5000K	3000/4000/5000K
CRI	Ra>70	Ra>70
Input Voltages	120-277V	120-277V
Frequency	50/60Hz	50/60Hz
Power Factor	>0.9	>0.9
Protection Index	IP65	IP65
Impact Resistance	IK08	IK08
Working Temperature	-40-50℃	-40-50℃
Working Humidity	10%-95%	10%-95%
Electrical Class	Class I	Class I
Finishing	Standard color(RAL 7035,7042,9006,9007) other colors upon request
Service Life	>50000H	>50000H

Dimensions

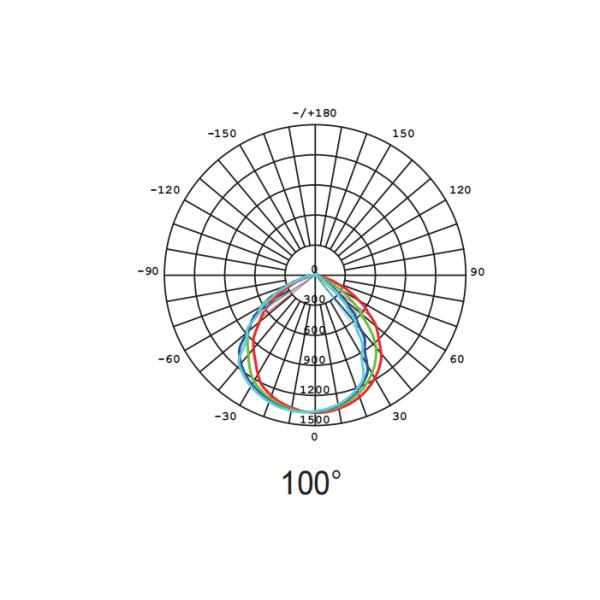

Photometric Distributions

Application example
